36 in. Plug-End Extension Spring (0.244 in. No. 3-Wire)

$64.99
100 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Description

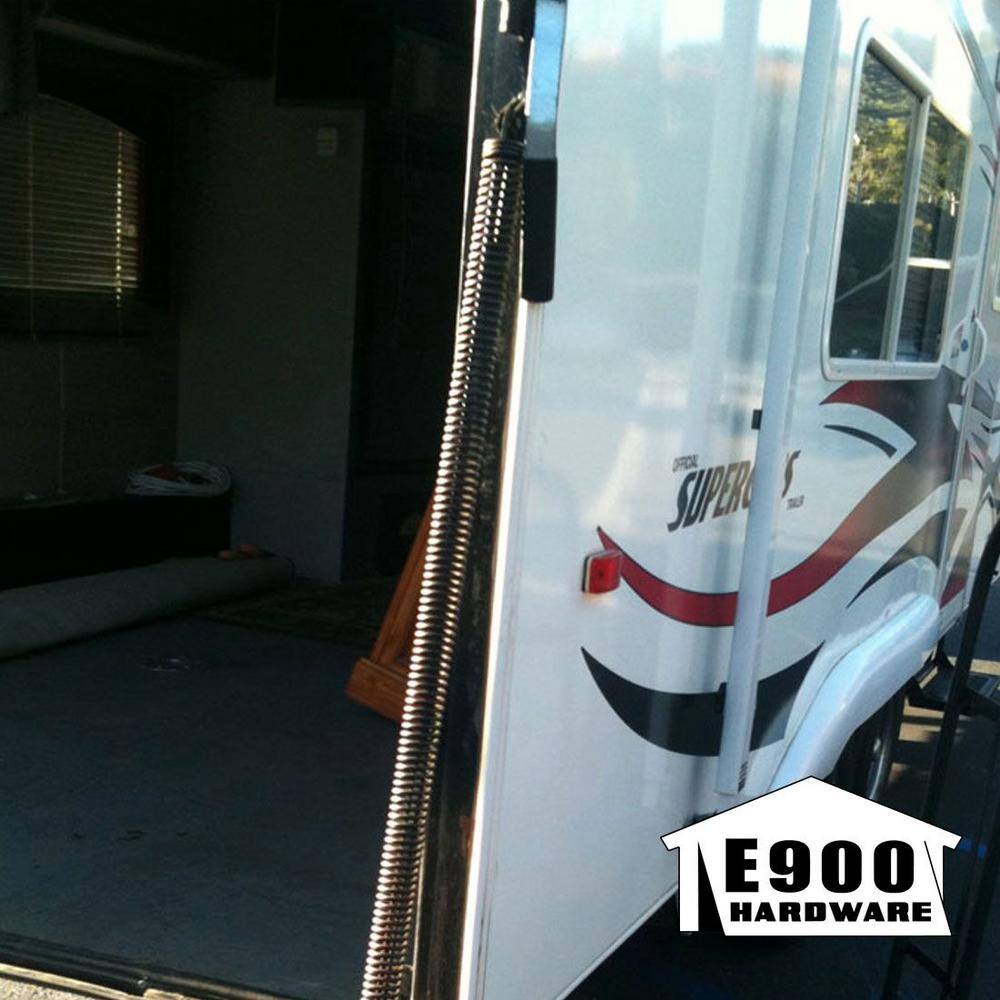

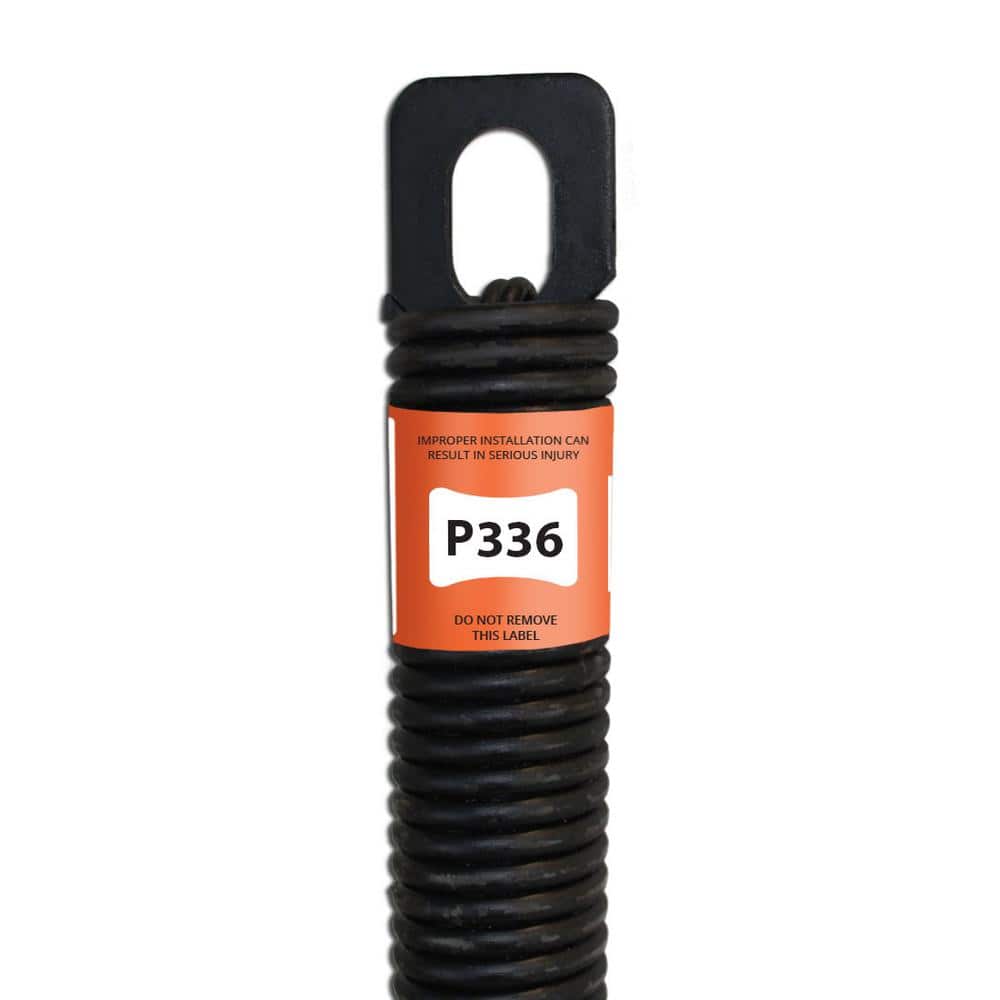

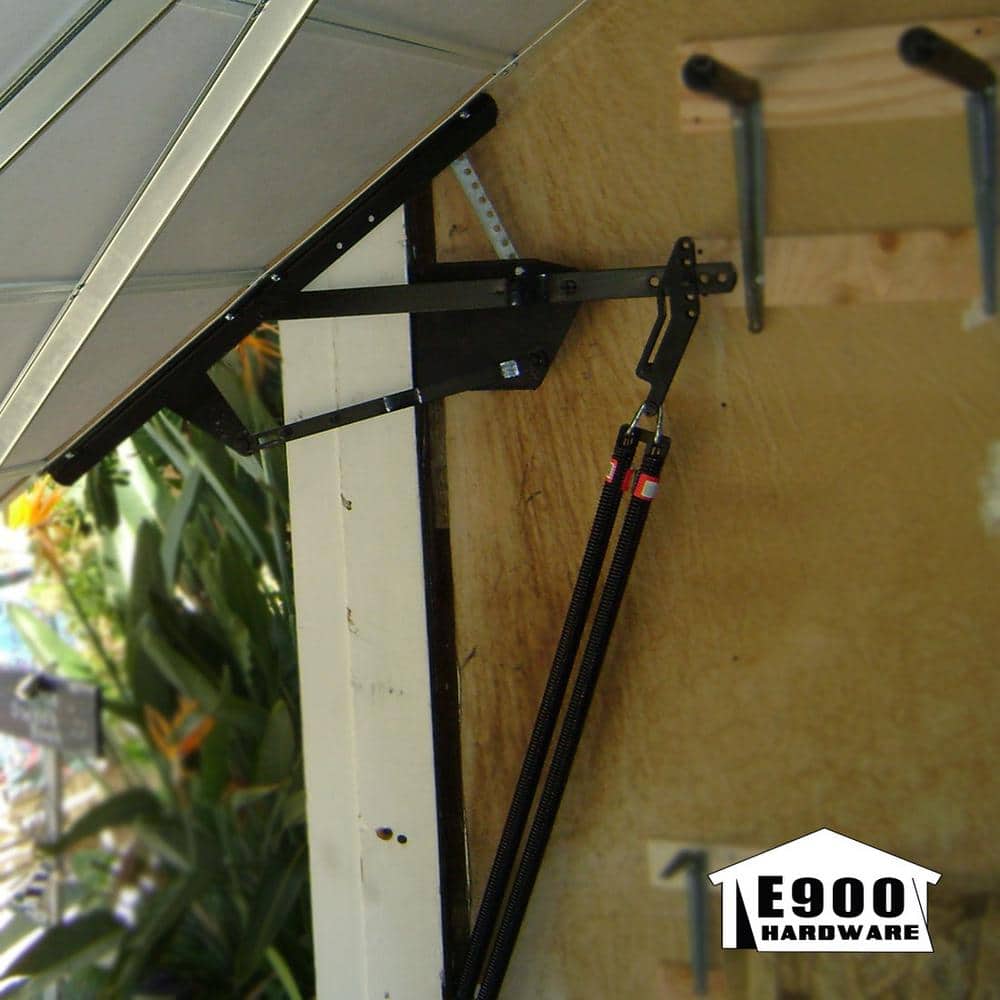

    The P336 36 in. Plug-End Extension Spring is a Holmes spring replacement for heavier one-piece garage doors as well as for toy haulers using lift springs. Replace all springs at the same time for balanced door lift and even wear. A c-hook is required for a single spring installation while a w-hook is required for a double spring installation – available separately.
    • 2-springs (1 each side) will lift a 125 lbs. – 250 lbs. door
    • Safety containment rod to prevent spring from coming loose
    • Minimum 1 in. low headroom required
    • Length over coils is 36 in.
    • Outside diameter is 2 in.
    • Wire diameter gauge is (0.244) no: 3
    • Initial tension is 165 lbs. – 185 lbs.
    • Maximum allowable stretch is 24.25 in.
